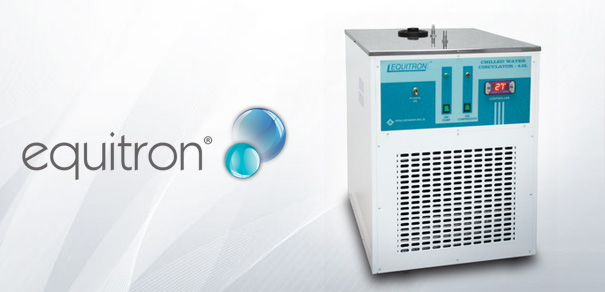

EQUITRON Recirculating chillers are compact, sturdy & have environment friendly CFC compressors. These Recirculating chillers are provided with special temperature controllers to maintain accuracy & safeguard compressor action.


  • EQUITRON Chilled water circulator is ideal for chilling & condensing operations in Rotary Vacuum Evaporation.

EVATOR Advantages:

  • Sturdy fabrication with SS top & SS angle structure.Panels in oven baked epoxy coated mild steel.
  • Four sturdy castors for easy manouverability.
  • Hermetically sealed environment friendly CFC free compressor.
  • Built in coolant reservoir of approx 4 litres.
  • Cooling capacity 750 W at 15°C; Min. range upto -10°C (at ambient 25°C)
  • Built in digital temperature controller - 1°C resolution.
  • Supllied with two insulated silicon hose(1 met each) for external circulation.
  • Gross dimensions: 56 x 41 x 65 cm.

Model Description Cooling Capacity Packing Dimensions (WxDxH)/ Gr weight
#8502.ROT.000 Chilled Water Circulator - 4L 750 W at 15°C 740 x 600 x 850 mm / 67 kg
